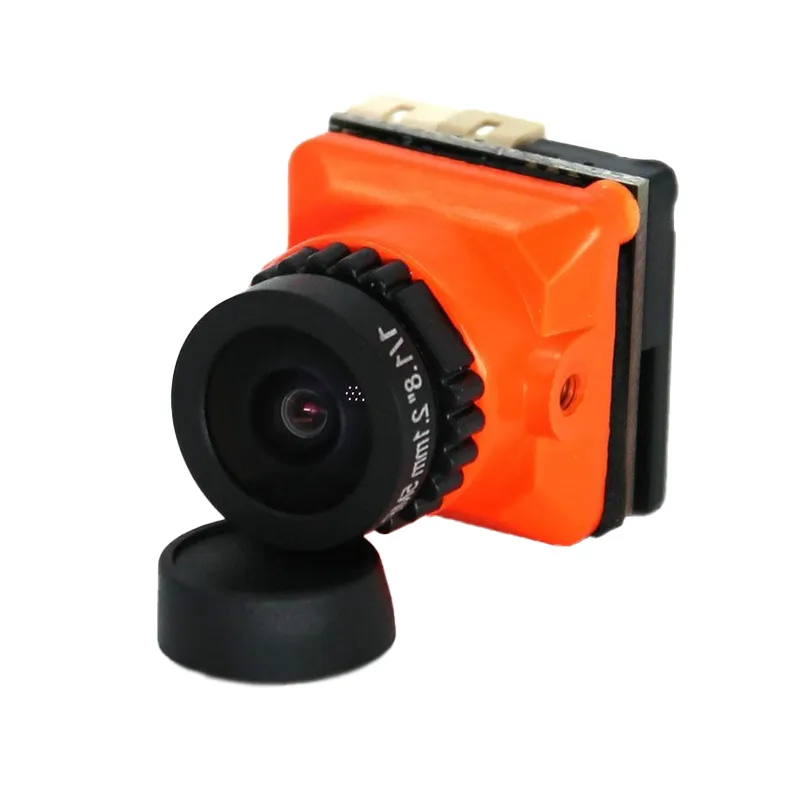

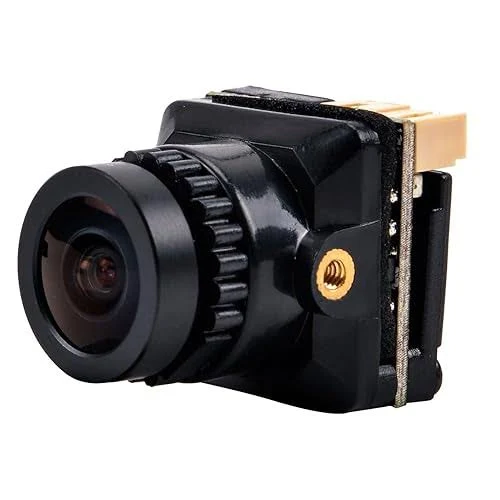

An FPV camera is crucial for building a drone, as it transmits video or photos to the receiver. This 1/3″ CMOS 1500TVL Mini FPV Camera supports both PAL and NTSC formats, each offering unique benefits for image quality and frame rate. The lens can tilt up to 158 degrees and has a low illumination of 0.001Lux/1.2F, making it ideal for night vision. The camera features a 2.1mm lens that provides clear and sharp images in various lighting conditions. It also includes Wide Dynamic Range (WDR) and 3D Noise Reduction (3DNR) functions to enhance image clarity and definition. This FPV camera is versatile and can be used for aerial photography, remote inspections, security, military, and entertainment purposes.
Features:
- Lens:2.1mm
- Min illumination:0.001Lux/1.2F
- Power: DC 5V-30V
- Electronic Shutter Speed: PAL
- Horizontal Resolution:1500TVL
- Day/Night: Auto/Color/B*W
- Signal System: PAL/NTSC (OSD Internal adjustable)
- DNR:3DNR
- Illumination, the effect is a good, quality-assured, ultra-small size, very suitable for FPV
- Color fidelity, low illumination, micropower consumption.
specification-
| Model | MINI B19 Orange |
|---|---|
| Power | DC 5V-30V |
| Image Sensor | 1/3” CMOS |
| Electronic Shutter Speed | PAL |
| Signal System | PAL/NTSC (OSD Internal adjustable) |
| Horizotal Resoulution | 1500TVL |
| Lens | 2.1mm |
| Min lllumination | 0.001Lux/1.2F |
| Backlight compensation(BLC) | YES |
| Auto Gain Control(AGC) | LOW/MIDDLE/HIGH |
| S/N Ratio | more than 60Db(AGC OFF) |
| WDR | D-WDR |
| DNR | 3DNR |
| Dimensions | 19mm*19mm*19mm |
| Net weight | 6.0g |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 3 × 3 × 3 cm |
Package Includes:
1 x 1/3″ CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL / NTSC With OSD
1 x OSD Board
1 x 2Pin Cable
1 x 3Pin Cable
1 x Product Manual
1 x Set of screws
