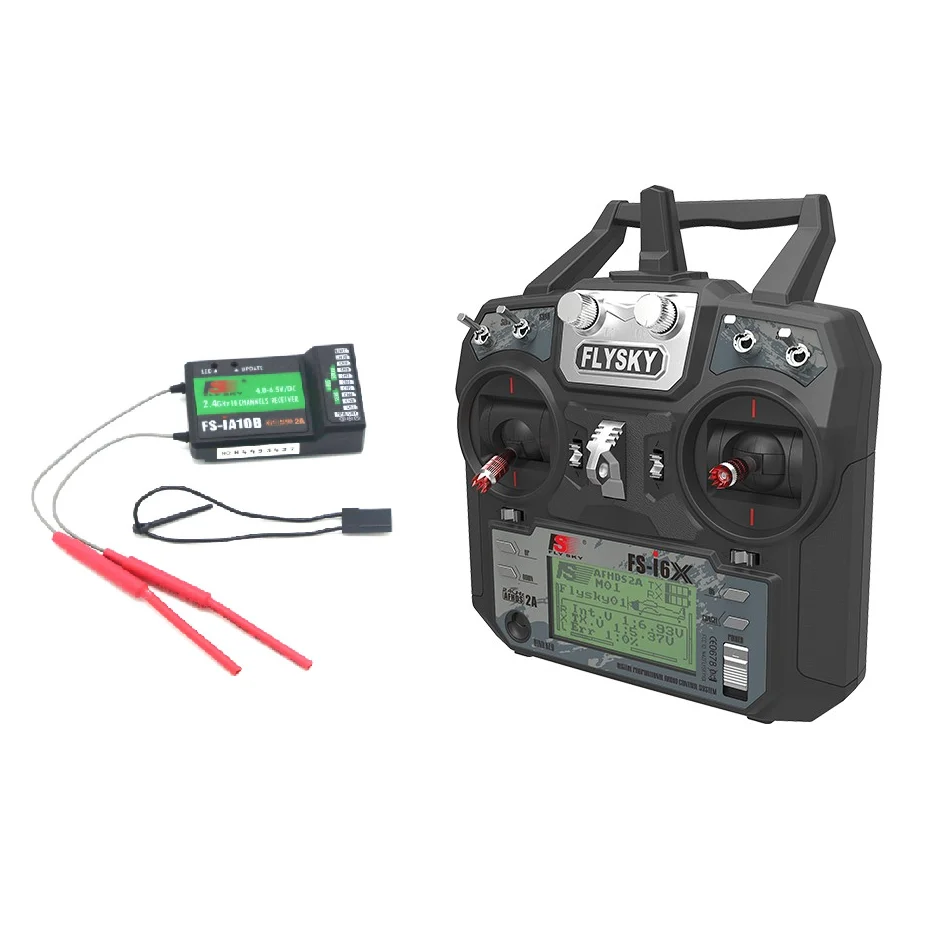

Flysky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver

Product description

• Operating a drone may seem straightforward, but it requires a transmitter for precise control. A multirotor cannot function without one, as it relies on radio signals to wirelessly send commands to a receiver on the aircraft. Flysky is a well-known brand offering a variety of affordable transmitters and receivers.
• Flysky’s AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology is designed for all radio control models, providing excellent interference protection, lower power consumption, and reliable receiver sensitivity.
• FrSky transmitters and receivers are gaining popularity for their innovative design and compatibility with high-end drone projects.
• Zbotic is the official distributor of Flysky products in India.

Features:

• 10 channel 2.4GHz radio with telemetry capability
• Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology
• Transmitters come pre-bound to the receiver
• Multiple control switches including a 3-pos switch and two potentiometers
• Easy to use and program
• 20 model memory
• Trainer port
• Backlit LCD screen displays real-time transmitter and receiver voltage

Specification  for FS-i6X RC Transmitter :

• Item: FS-i6X RC Transmitter
• Tx Channel: 6
• Model Type: Fixed-Wing/Glider/Helicopter
• RF Range: 2.408-2.475GHz
• RF Power : < 20dBm
• RF Channel: 135
• Bandwidth : 500KHz
• 2.4GHz System : AFHDS 2A / AFDHS
• Modulation Type: GFSK
• Stick Resolution: 4096
• Low Voltage Warning: < 4.2V
• DSC port: PS/2 Port PPM
• Chargeable: No
• Antenna Length: 26mm (Dual Antenna)
• Weight: 392g
• Power : 6V DC 1.5A
• Display: STN Transflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight
• Size : 174 x 89 x 190 mm
• Online Update: Yes
• Color: Black
• Certificate: CE0678, FCC

Specifications for FS-iA10B RC Receiver:

• Rx Channels: 10
• Suitable models: Airplane / glider / helicopter Health
• Frequency range :2.4-2 .48 GHz
• Transmitting power: not more than 20dBm
• Receiver sensitivity:-105dBm
• 2.4G modes: automatic frequency second generation digital system
• Encoding: GFSK
• Antenna length: 26 mm * 2 (dual antenna)
• Weight: 19.3 g
• Input power :4.0-6 .5 V DC
• Dimensions: 47 x 33.1 x 14.7 mm
• Color: Black
• Certification: CE0678, FCC
• i-BUS Interface: Yes
• Data acquisition interface: Yes
• Color: Black.
• Model Type : Airplane / Glider / Helicopter
• Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

Package Includes :

• 1 x  Fly sky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter.
• 1 x FS-iA10B 2.4GHz 10CH Receiver with Binding cable.
• 1 x PS2 to USB Update Cable.
• 1 x PS2 to USB Update Cable
